MOTOROLA MVME1600
SINGLE BOARD COMPUTERS
THESE CAN BE CUSTOMIZED WITH ANY FIRMWARE VERSION FOR YOUR APPLICATION:
We can clone / duplicate anything you can provide.
ALL BOARDS GO THROUGH FULL FUNCTIONAL TEST PRIOR TO SHIPMENT.
We
also provide component-level board repair
services.
Tel: +1 (978) 835-4539
Sales@embeddedsales.com

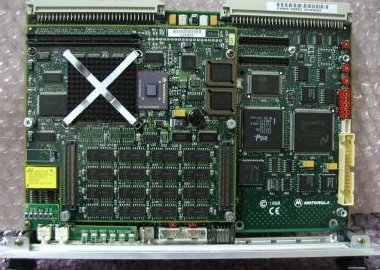

The MVME1603/1604 is a VMEmodule
single-board computer equipped
with a PowerPC Series microprocessor. The MVME1603 is equipped
with a PowerPC 603 microprocessor; the MVME1604 has a PowerPC 604.
256KB L2 cache memory is available as an option on certain models of
the
MVME1603 and the MVME1604.
The MVME1603/1604 family has two parallel branches based on two
distinct versions (MVME1600-001 and MVME1600-011) of the base
board. The differences between the MVME1600-001 and the
MVME1600-011 lie mainly in the area of I/O handling; the logic design
is
the same for both versions.
PM603/604 Processor/Memory Mezzanine Module
The PM603 or PM604 is the processor/memory mezzanine module that
(together with an LED mezzanine, an optional RAM104 DRAM module,
and an optional PCI mezzanine card) plugs into the MVME1600-001 or
MVME1600-011 base board to make a complete single-board computer.
You have the choice of a PowerPC603 module (the PM603) or a
PowerPC604 module (the PM604) with from 8MB to 64MB of DRAM,
or up to 128MB of DRAM with a RAM104. 256KB of L2 cache is
available as an option. There is no parity or ECC protection on the
DRAM.
If you are looking for an MVME1600 series board:
Send us as much information
as possible about your current board to help identify the version.
01-W p/n for baseboard and
modules, pictures, CNFG & VER command output etc.
| Force / Motorola / Emerson P/N | Description | Price |
| MVME1600-001 | Base board, can use the following Processor Modules: PM603-00x, PM603-01x, PM603-02x, PM603-03x, PM604-00x, PM604-01x, Ram Module RAM104-00x, used with MVME760 transition | Email for price and availability |
| MVME1600-011 | Base board, can use the following Processor Modules: PM603-00x, PM603-01x, PM603-02x, PM603-03x, PM604-00x, PM604-01x, Ram Module RAM104-00x, used with MVME712M transition | Email for price and availability |
| MVME1603 | MVME1600 with MPC603 processor module | Email for price and availability |
| MVME1604 | MVME1600 with MPC604 processor module | Email for price and availability |
| PM603-001a | ||
| PM603-011a | ||
| PM603-021a | ||
| PM603-002a | ||
| PM603-012a | ||
| PM603-022a | ||
| PM603-032 | 200Mhz MPC603 MPU, 16MB DRAM, 256KB L2 cache | |
| PM603-032a | 200Mhz MPC603 MPU, 16MB DRAM, 256KB L2 cache | |
| PM603-003a | ||
| PM603-013a | ||
| PM603-023a | ||
| PM603-033 | 200Mhz MPC603 MPU, 32MB DRAM, 256KB L2 cache | |
| PM603-033a | 200Mhz MPC603 MPU, 32MB DRAM, 256KB L2 cache | |
| PM603-004a | ||
| PM603-014a | ||
| PM603-024a | ||
| PM603-034 | 200Mhz MPC603 MPU, 64MB DRAM, 256KB L2 cache | |
| PM603-034a | 200Mhz MPC603 MPU, 64MB DRAM, 256KB L2 cache | |
| PM604-001a | ||
| PM604-011a | ||
| PM604-002a | ||
| PM604-012a | ||
| PM604-003a | ||
| PM604-013a | ||
| PM604-004a | ||
| PM604-014a | ||
| RAM104-001a | 8 MB DRAM | |
| RAM104-002a | 16 MB DRAM | |
| RAM104-003a | 32 MB DRAM | |
| RAM104-004a | 64 MB DRAM | |
