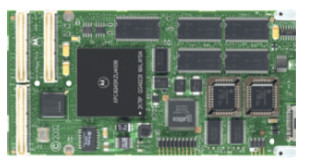

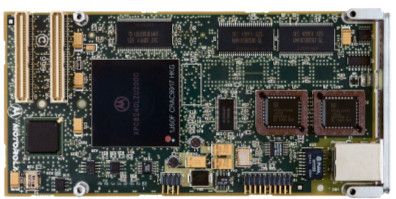

MOTOROLA / EMERSON PrPMC600 / PrPMC610
PROCESSOR PMC MODULES
Embedded Engineering is now providing long-term product support for the entire PrPMC600 / PrPMC610 product line
and can deliver units in large quantity. Optional conformal coating is available.
THESE CAN BE CUSTOMIZED WITH ANY FIRMWARE VERSION FOR YOUR APPLICATION:
We can clone / duplicate anything you can provide.
ALL BOARDS GO THROUGH FULL FUNCTIONAL TEST PRIOR TO SHIPMENT.
Tel: +1 (978) 835-4539
Email:
Sales@embeddedsales.com
DUNS# 873155886
CAGE Code: 4DXW9
| Motorola / Emerson / Artesyn P/N | Description | Price |
| PrPMC600 / PrPMC610 Models | ||
| PrPMC600-1131 | MPC8240, 200MHz 32MB ECC SDRAM, 9M Flash, Standard Size, No Memory Expansion | Email for price and availability |
| PrPMC600-1141 | MPC8240, 200MHz 64MB ECC SDRAM, 9M Flash, Standard Size, No Memory Expansion | Email for price and availability |
| PrPMC600-1231 | MPC8240, 250MHz 32MB ECC SDRAM, 9M Flash, Standard Size, No Memory Expansion | Email for price and availability |
| PrPMC600-1241 | MPC8240, 250MHz 64MB ECC SDRAM, 9M Flash, Standard Size, No Memory Expansion | Email for price and availability |
| PrPMC600-3241 | MPC8240, 250MHz 64MB ECC SDRAM, 9M Flash, Std. Size, with added Memory Mezzanine Connector | Email for price and availability |
| PrPMC610-1141 | MPC8245, 300 MHZ, 64MB ECC, NO ENET | Email for price and availability |
| PrPMC610-1251 | MPC8245, 350 MHZ, 128MB ECC, NO ENET, 66 MHz PCI interface | Email for price and availability |
| PrPMC610-2251 | MPC8245, 350 MHZ, 128MB ECC, FRONT ENET, 33 MHz PCI interface | Email for price and availability |
| PrPMC610-3251 | MPC8245, 350 MHZ, 128MB ECC, REAR ENET, 33 MHz PCI interface | Email for price and availability |
| PrPMC610-1254 | MPC8245, 350 MHZ, 128MB, NO ENET, MEM MEZZ CONNECTOR, 66 MHz PCI interface | Email for price and availability |
| PrPMC610-2254 | MPC8245, 350 MHZ, 128MB, FRONT ENET, MEM MEZZ CONNECTOR, 33 MHz PCI interface | Email for price and availability |
| PrPMC610-3254 | MPC8245, 350 MHZ, 128MB, REAR ENET, MEM MEZZ CONNECTOR, 33 MHz PCI interface | Email for price and availability |
| PrPMC610-2141 | MPC8245, 300 MHZ, 64MB ECC, FRONT ENET | Email for price and availability |
| PrPMC610-3141 | MPC8245, 300 MHZ, 64MB ECC, REAR ENET | Email for price and availability |
| Memory Expansion Modules | ||
| RAM400-003 | 32MB SDRAM Memory Mezzanine Module (optional) | Email for price and availability |
| RAM400-004 | 64MB SDRAM Memory Mezzanine Module (optional) | Email for price and availability |
| RAM400-005 | 128MB SDRAM Memory Mezzanine Module (optional) | Email for price and availability |
| RAM400-006 | 256MB SDRAM Memory Mezzanine Module (optional) | Email for price and availability |
